NTRAK Switchback Module

Wayne & Bonnie Lette

Click on each image to view larger picture This is our first NTrak module
which we started in the fall of 2008 and finished just in time for Railfest 2009

This is our 30" x 72" frame with folding legs

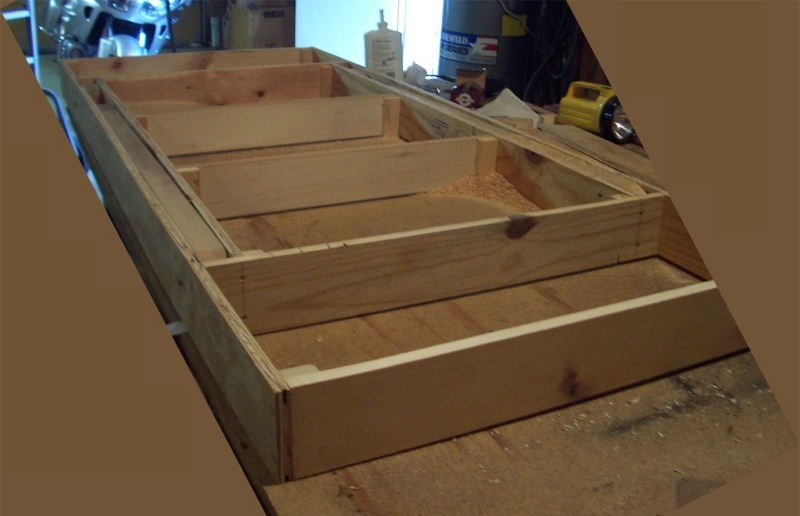

72" by 30" frame with
 folding legs
Frame getting plywood top put on

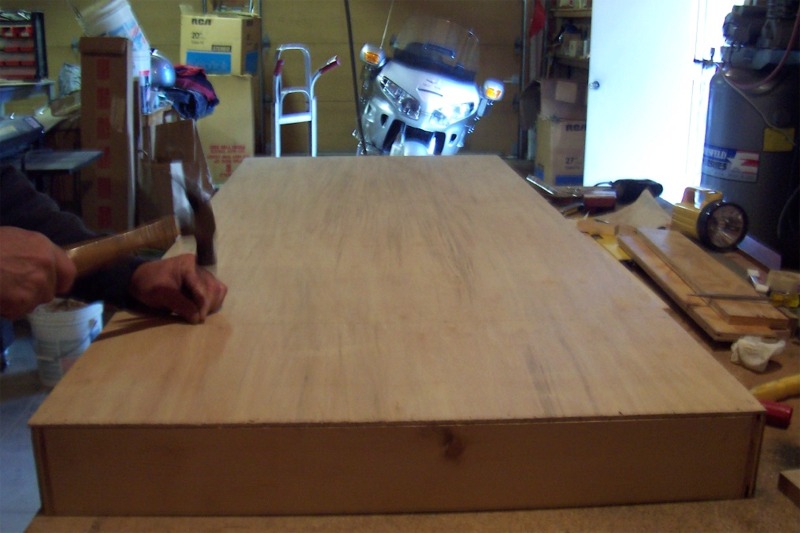

Plywood top
Completed table painted black

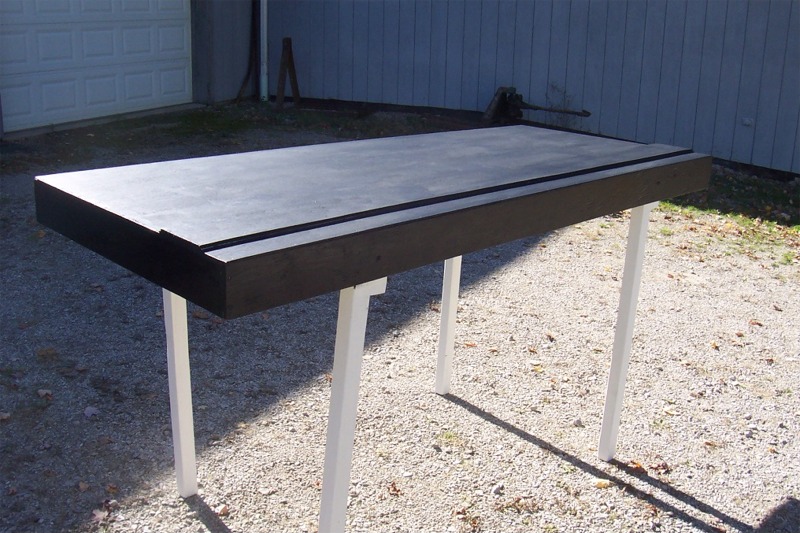

Finished table
Our original thought was to have our switchback to have 6 levels.
Original 6 level idea
We found out that was too tall to be put in only 30" of table

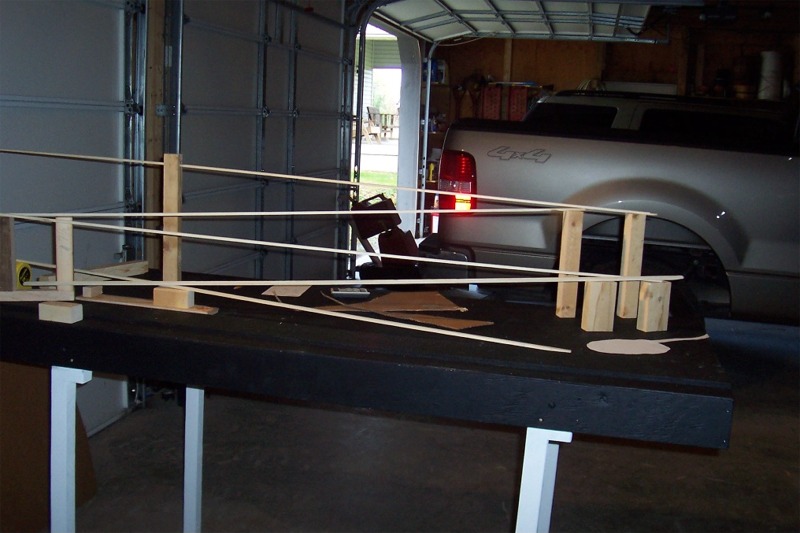

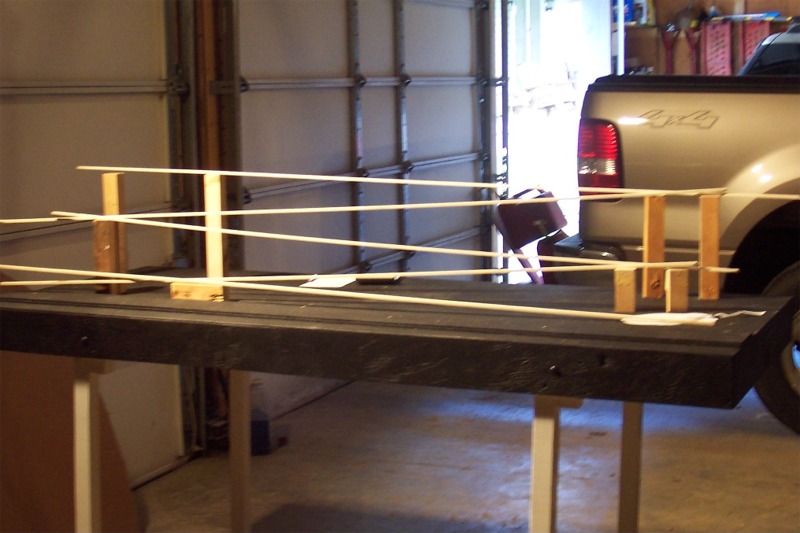

Shortened 6 level
decided that 6 levels was too much to fit on 30" module

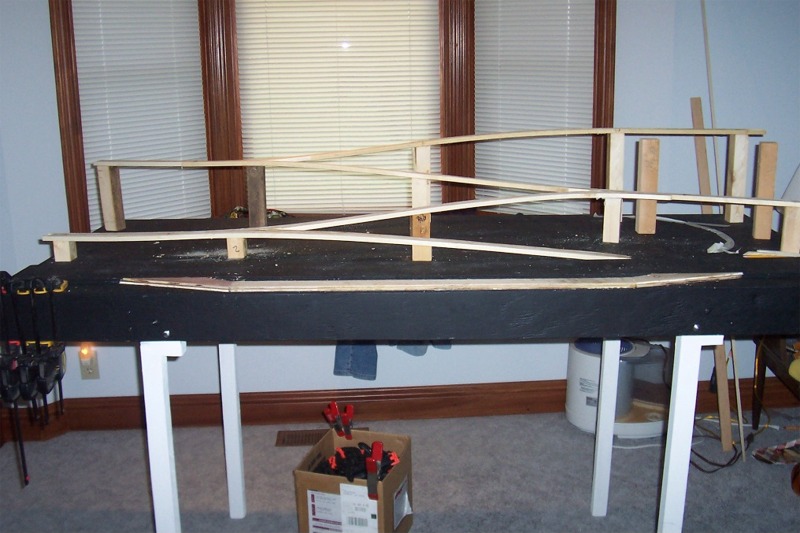

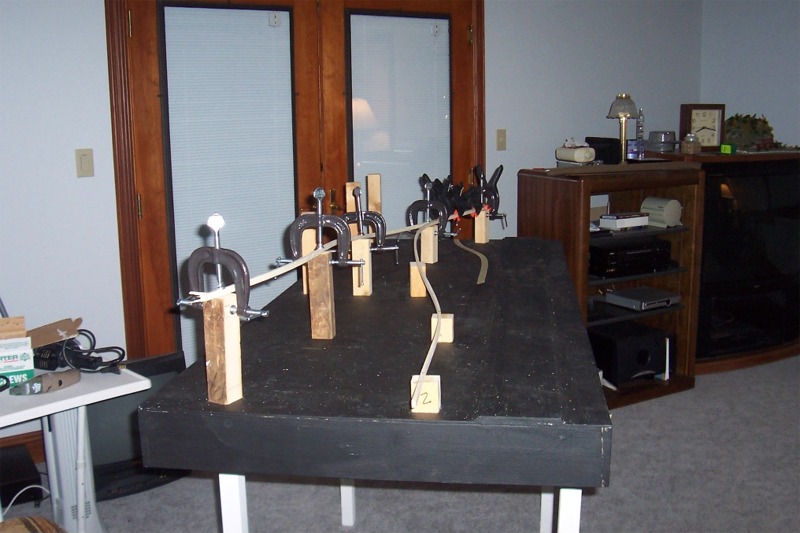

Start of 5 level spline roadbed
Start of 5 level spline roadbed

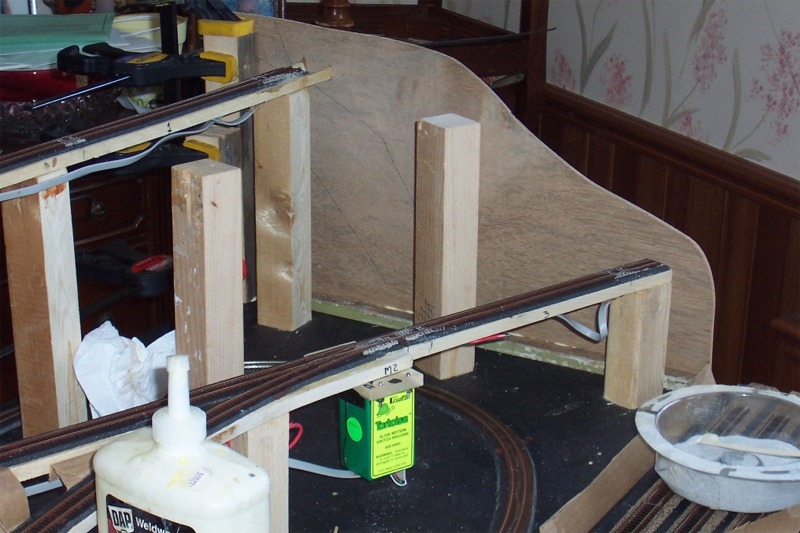

More spline roadbed
More spline

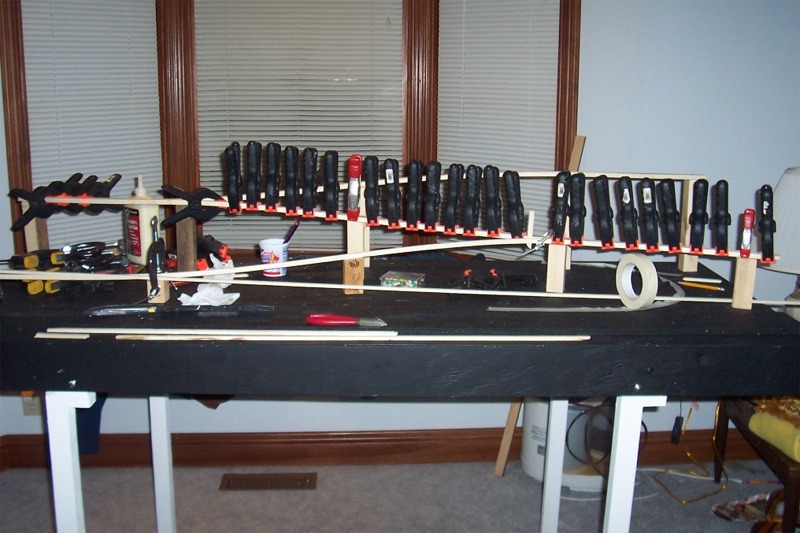

More clamps needed
Call Matt, I need more clamps

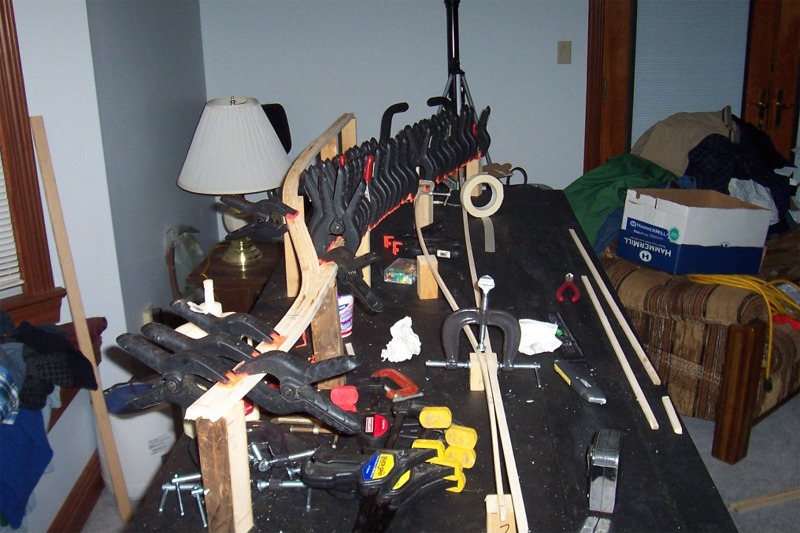

In the words or Norm Abrams, You can never have too many clamps;
Still more clamps
Final spline roadbed view
Final spline view

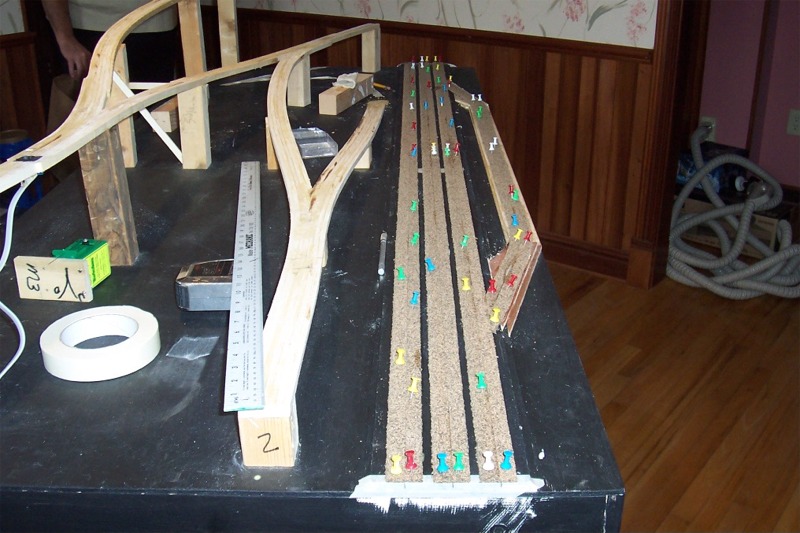

Placement of 3tracks to comply with NTRAK standards
NTrak section

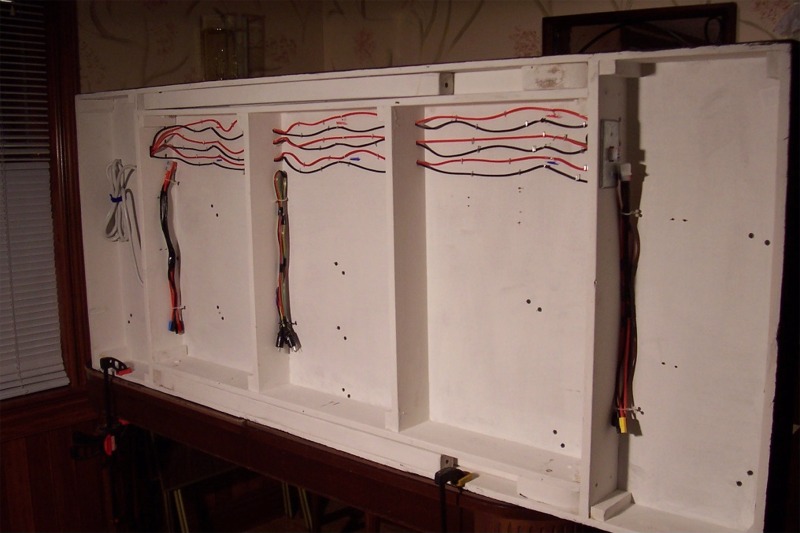

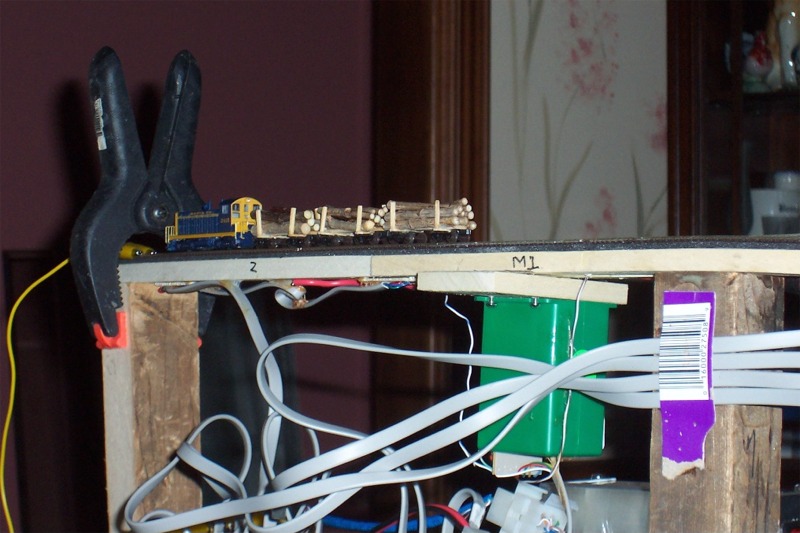

Bottom view of module showing wires connected to NTrak section
Bottom view
First test run to train and controler circuitry
First test run

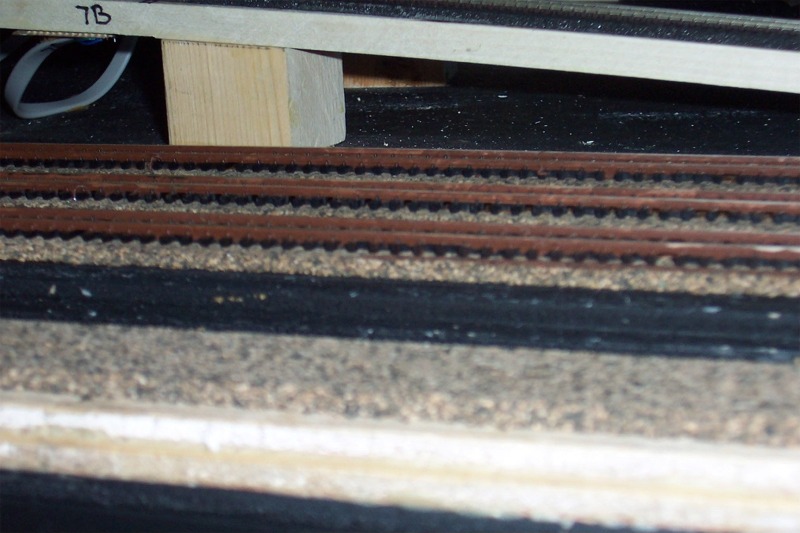

Bonnie's painting of rails to show rust
Rusted rails
View of track that will be hidden under mountain
Hidden track

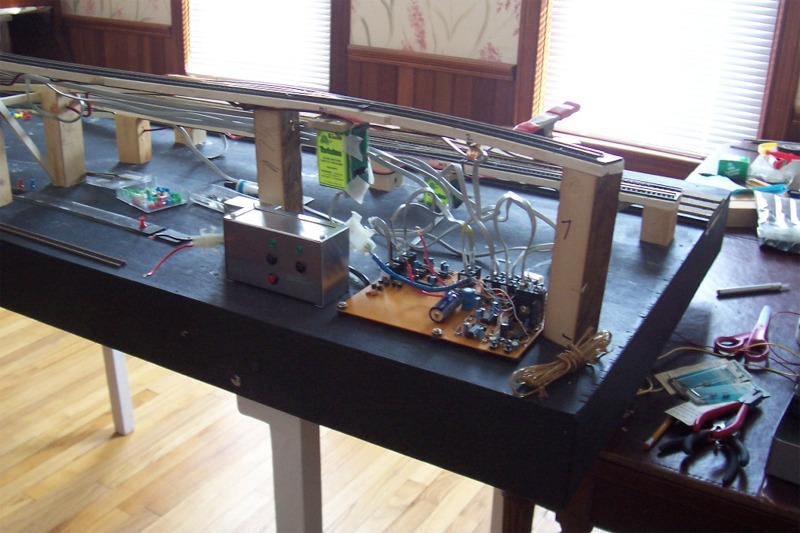

View of controler and interconnect wires
Rats nest of control wires

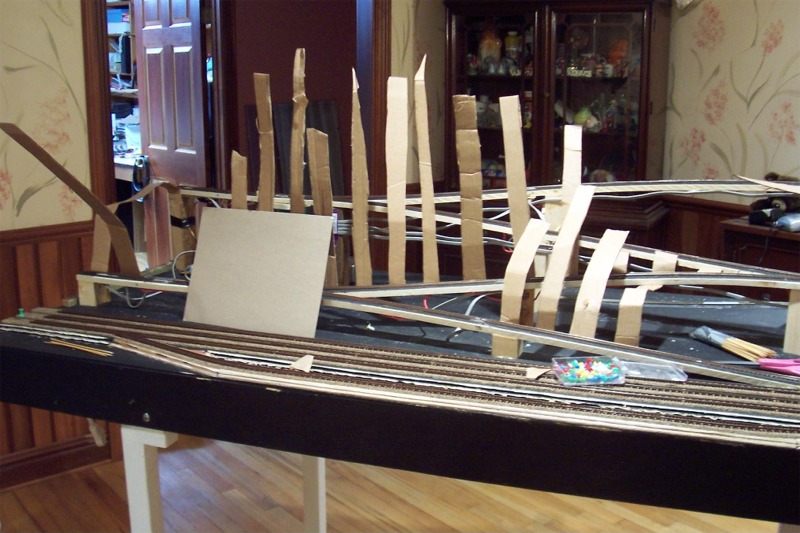

View of cardboard used to construct mountain

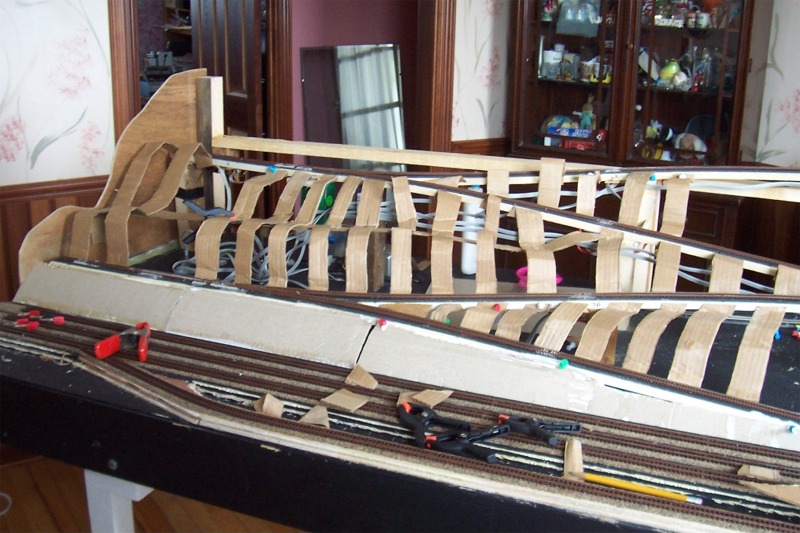

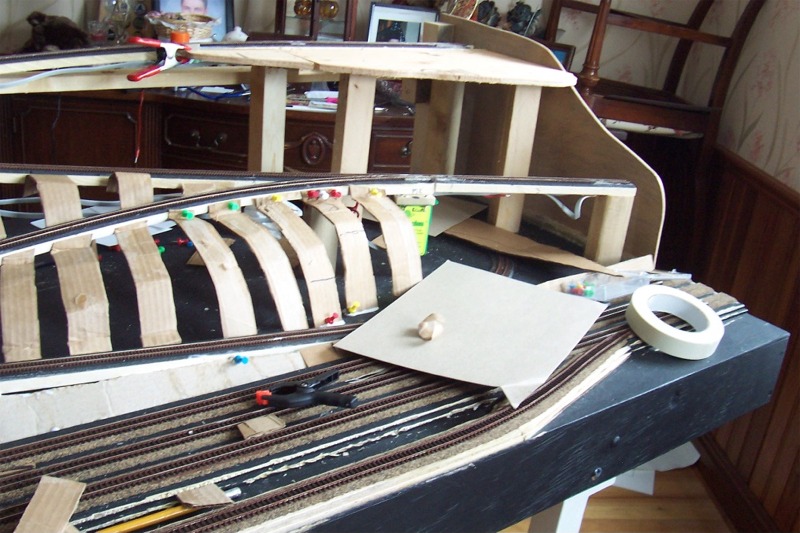

Start of cardboard support web
Left end profile
Left end profile

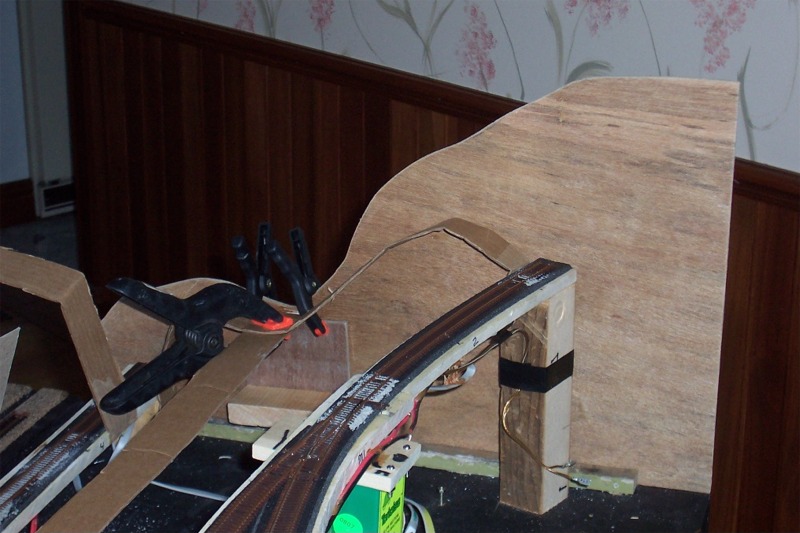

Right end profile
Right end profile
Rear profile
Rear profile

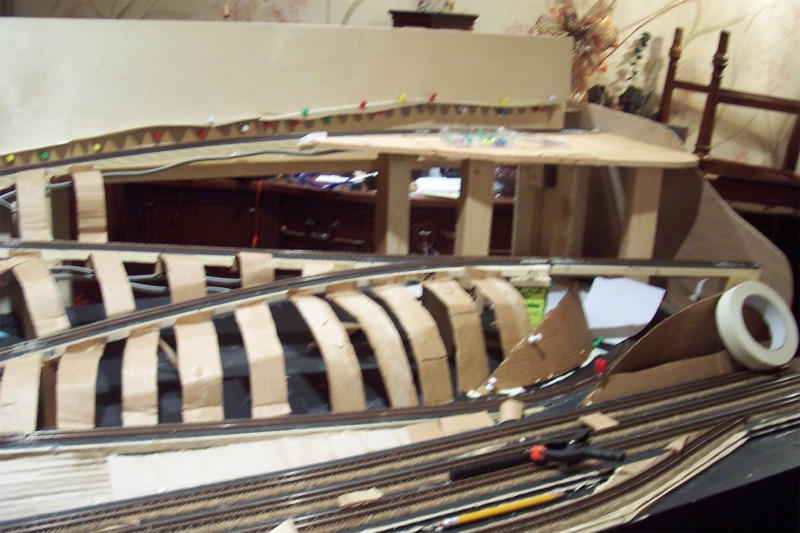

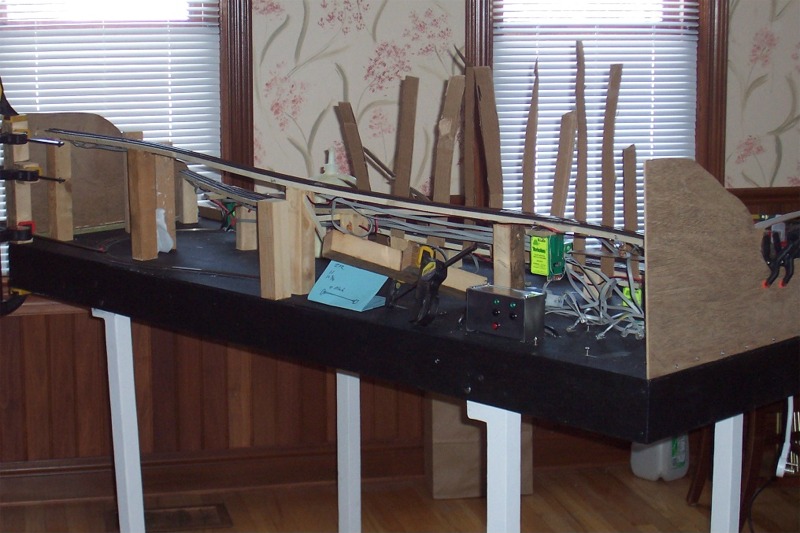

Most of the webbing in place
Most webbing in place
End view of webbing
End view of webbing
Webbing view for other end
Webbing view for other end

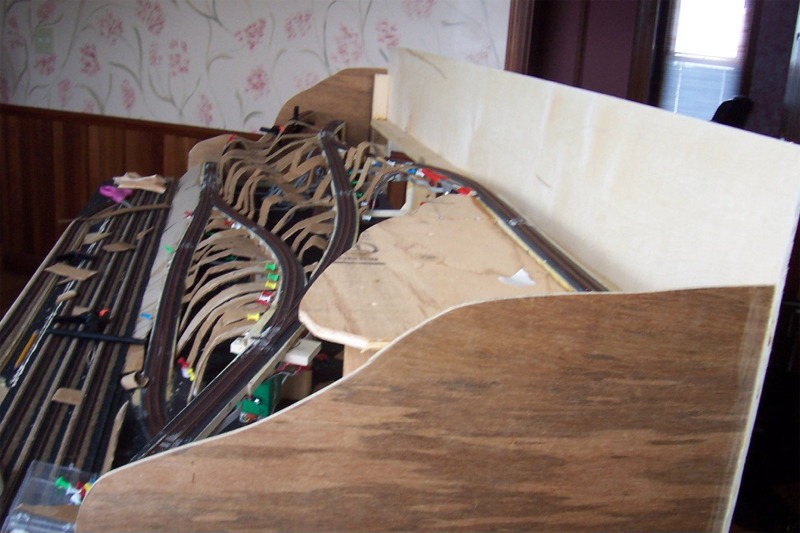

Plywood back installed
Plywood back installed

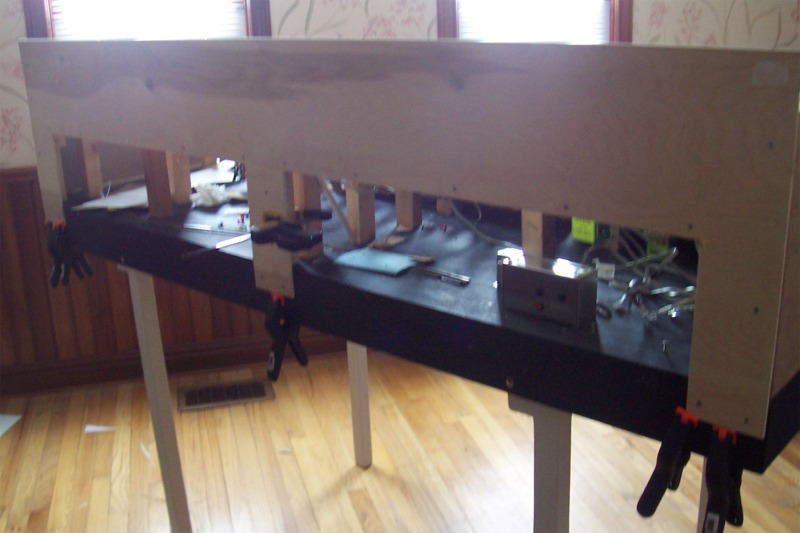

Front view of skyboard
Front view of skyboard

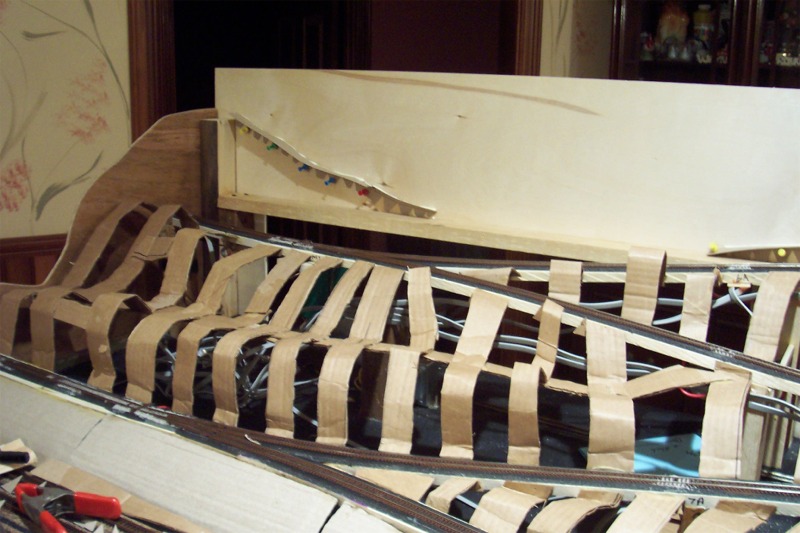

Right end view of webbing
Right end view of webbing
Left end view of webbing
Left end view of webbing

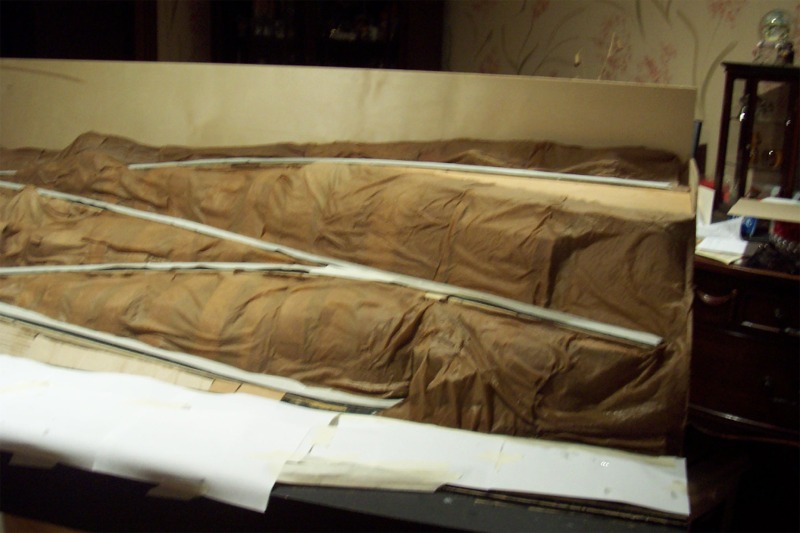

Paper glued to webbing
Paper glued to webbing
First snow
First snow

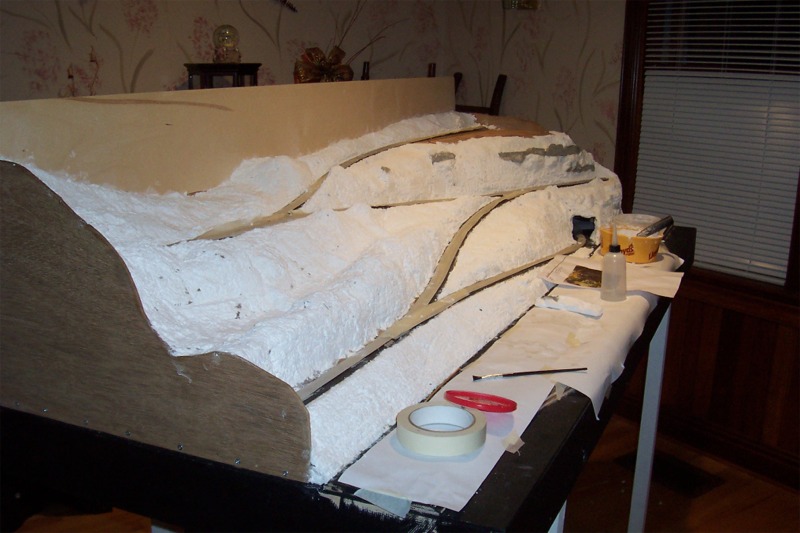

Rock painting
Rock painting
More rock painting
More rock painting

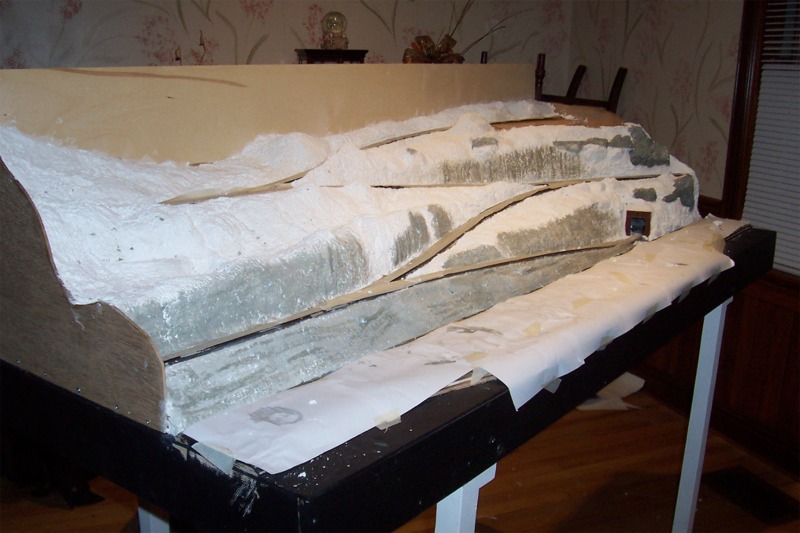

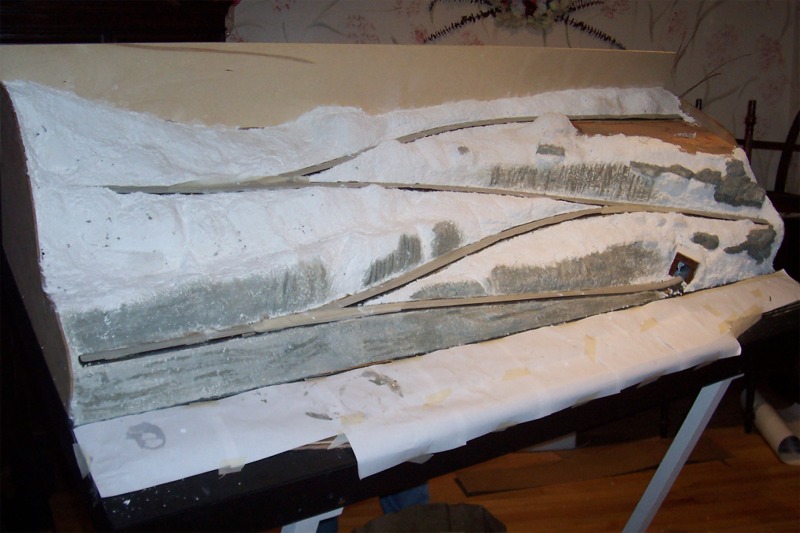

Plaster all painted
Plaster all painted
First trees sprouting
First trees sprouting

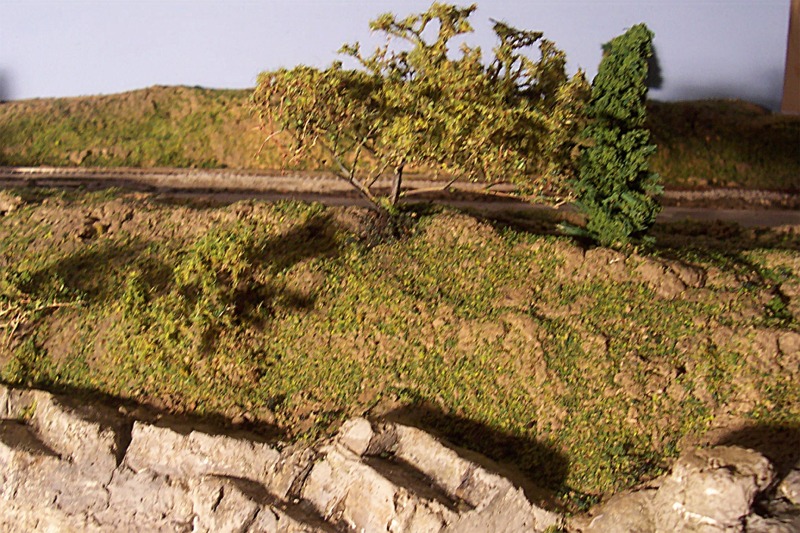

Tree close-up
Tree close-up

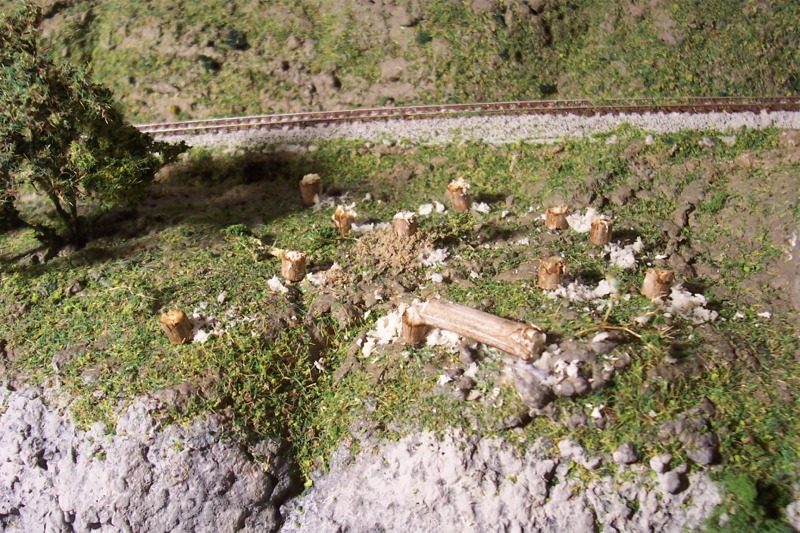

Tree stumps
Tree stumps
More stumps
More stumps

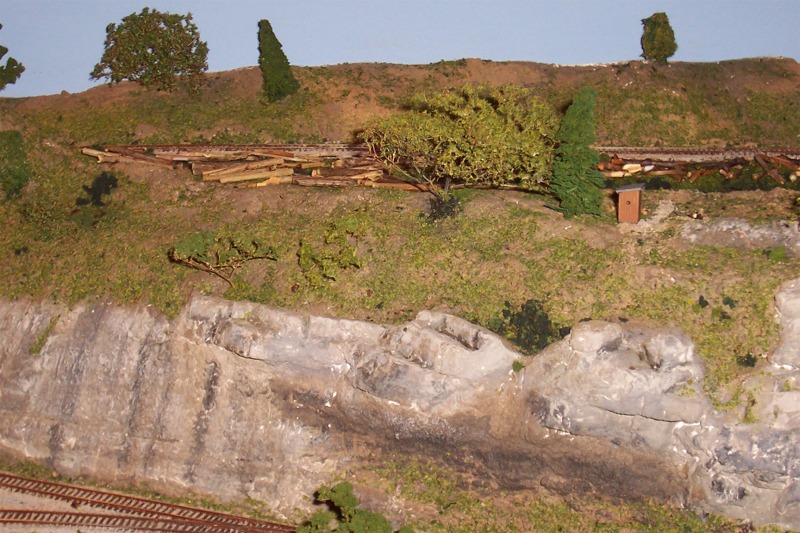

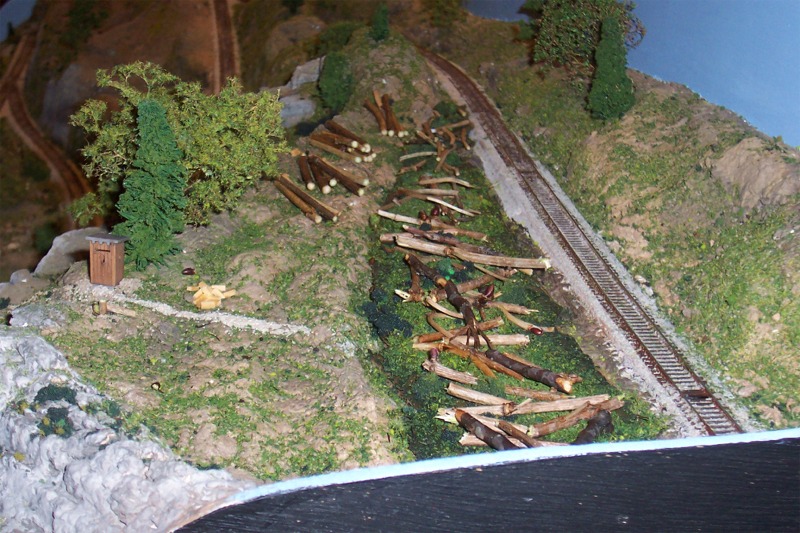

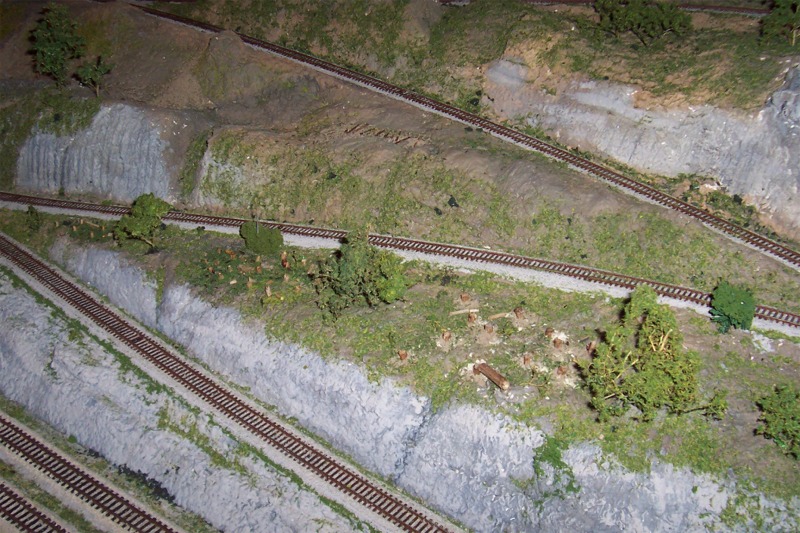

Trees waiting to be cut and loaded
Trees waiting to be cut and loaded
viewed from front
Trees waiting to be cut and loaded
Trees waiting to be cut and loaded
viewed from top

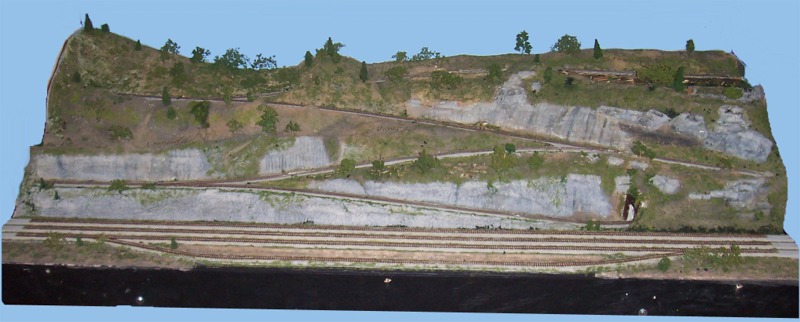

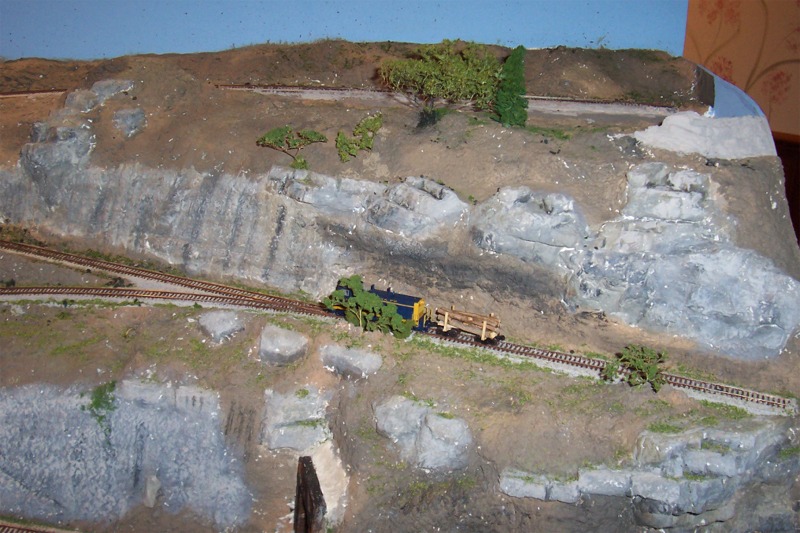

Final
Final picture
Enclosed and ready for transport
Enclosed and ready for transport.
Wished Denny would have gotten clear
Plexiglas instead of this blue stuff
Lette Module Works, sign
